Explorer 710 BGAN Terminal

$5,995.00

The all-new EXPLORER 710 provides on-demand streaming rates between 600-700 kbps out of the box. As the world’s smallest Class 1 BGAN terminal and the first to take advantage of Inmarsat’s new streaming service (High Data Rate), the EXPLORER 710 will deliver high-speed, ultra-portable satellite streaming for broadcasting and other IP-based industry applications.

The EXPLORER 710 includes several advanced new features, including plug and play bonding – simply connect two EXPLORER 710’s and double the throughput. A low-end Land VSAT capability in a portable BGAN form factor.



SKU: 403720B-00500 Categories: ,
Manufacturer: ,
BrandsBrands

Description

The EXPLORER 710 is a handy portable terminal supporting simultaneous voice and data communication over BGAN. It provides versatility and high speed access with multiple interfaces for countless applications. Just connect your phone, laptop, smartphone or tablet, point the antenna towards the BGAN satellite – and you are online.

The EXPLORER 710 provides access to the highest bandwidth available on the BGAN network. With BGAN HDR (High Data Rate) you get a portfolio of four channel streaming rates including

symmetric and asymmetric options so you only pay for the data you need. The system offers multi-user as well as single-user functionality, making it a flexible solution for a variety of applications, such as:

  • Broadcasting
  • Internet browsing
  • E-mail
  • Phone services
  • Large file transfers
  • Video conference and Streaming
  • VPN (Virtual Private Network) access to corporate servers

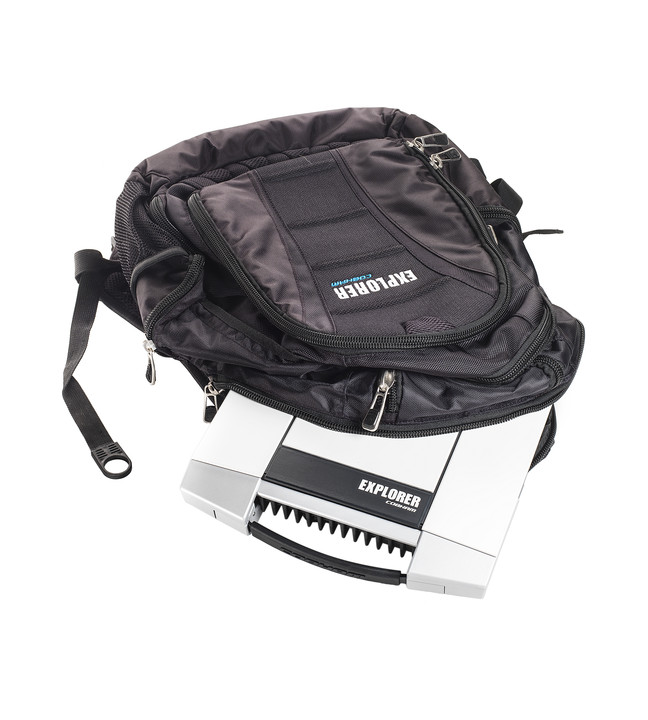

The EXPLORER 710 can withstand severe environmental conditions such as humidity, dust, extreme weather and changing temperatures. It is small in size and fits easily into a backpack or similar. With the detachable antenna it is well suited for temporary camps or fixed installations.



Features

  • Full duplex, single or multi-user, standard data up to 492 kbps
  • Support for streaming data at 32, 64, 128, 176, 256 kbps, HDR (asynchronous or synchronous) and BGAN X-Stream
  • Standard LAN w. PoE, WLAN, ISDN and Phone ports and USB Host interface
  • Detachable antenna with integrated transceiver stand and transceiver-to-antenna range up to 100 m/328 ft.
  • Built-in DHCP/NAT wireless router
  • Solar panel direct interface
  • Support for battery hot swap
  • 10-32 VDC input
  • 100-240 VAC power adapter
  • Built-in web interface allowing you to manage your calls and customize the terminal to your specific needs, using a smartphone, computer or tablet.
  • Point-to-Point Protocol over Ethernet (PPPoE)
  • Built-in PBX managing voice communication
  • CE, FCC, GMPCS and IC certified

Explorer 710 BGAN Datasheet

Additional information

Manufacturer

Inmarsat
